Production and sale of high-purity methane gas


High-purity methane gas for cutting-edge technologies
High-purity methane gas is used in the manufacturing process of materials for solar cells and other electronic devices.

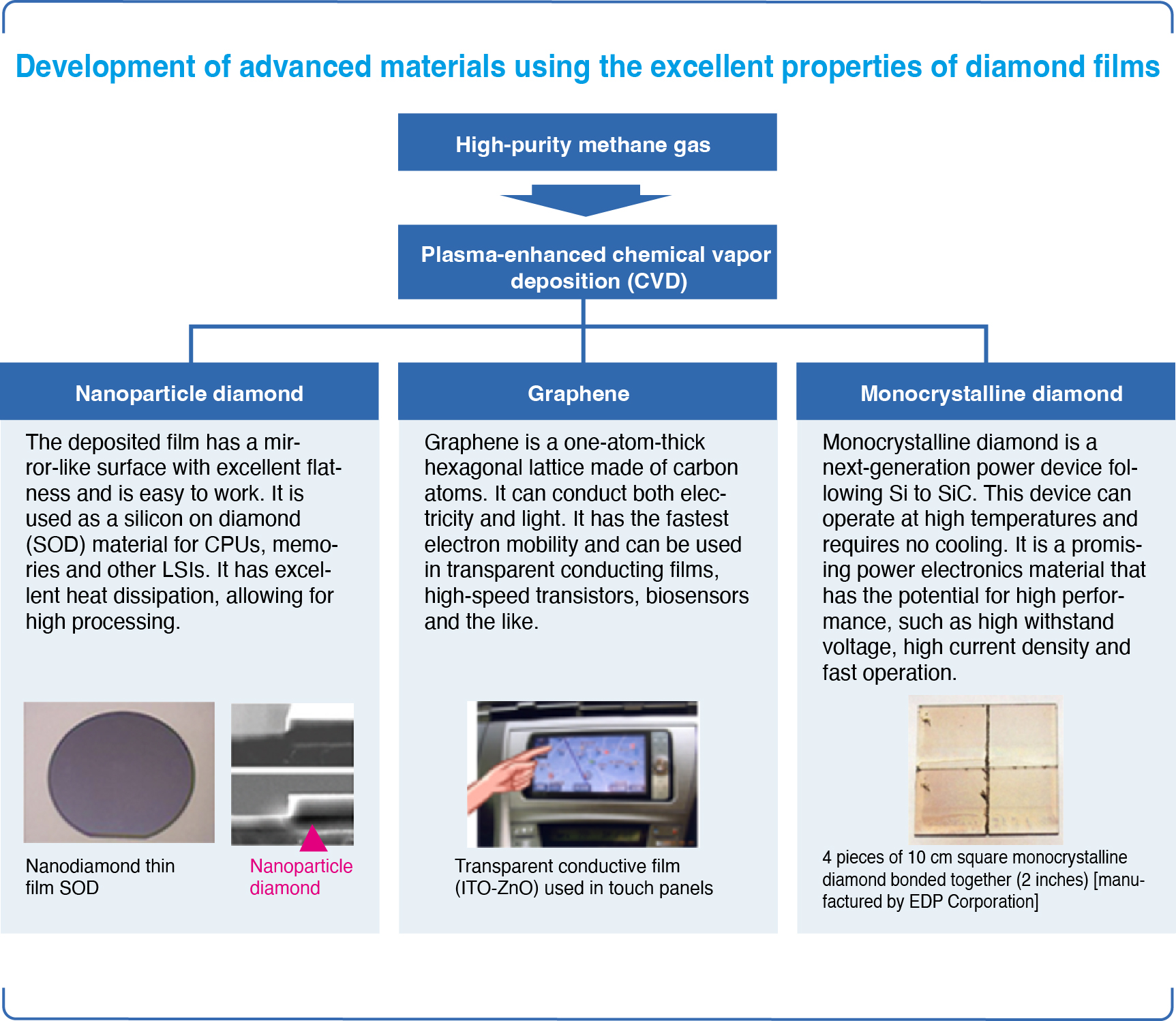

High-purity methane gas is attracting attention for cutting-edge technologies, such as nanoparticle diamond, graphene and single crystal diamond technologies.
We are confident in our quality.
For high-purity methane gas,
Please contact Osaka Gas Liquid!

Overview

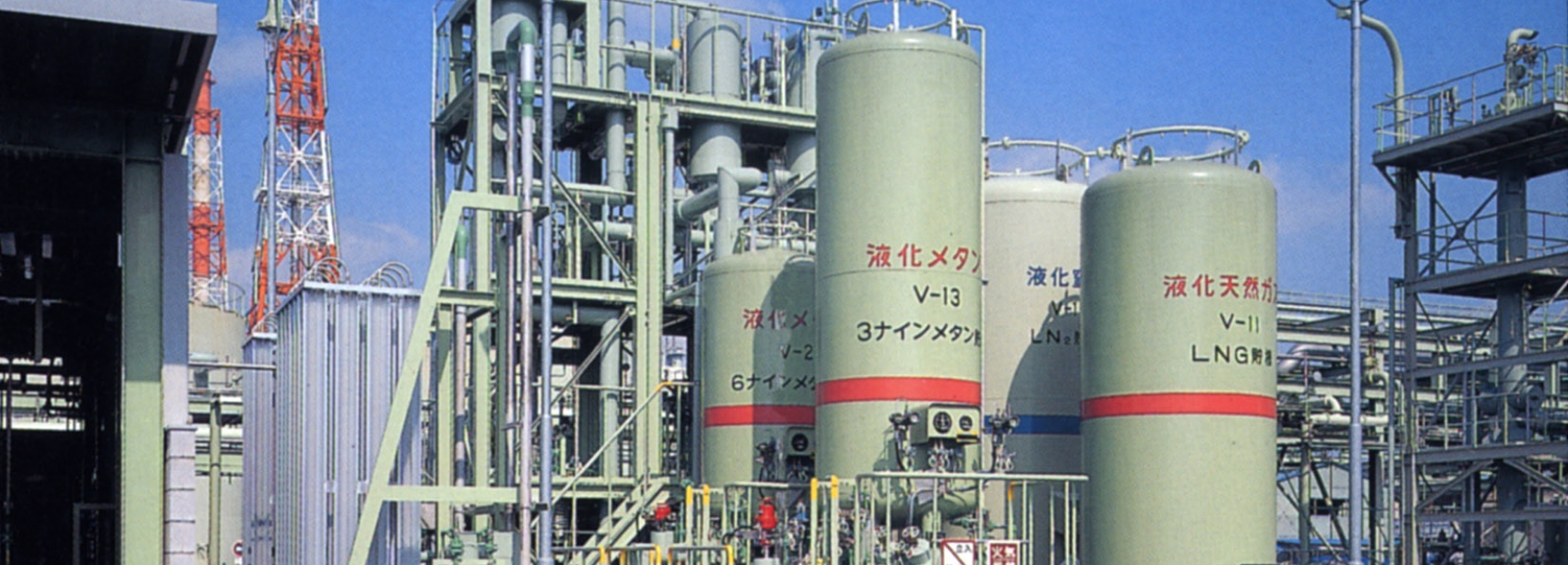

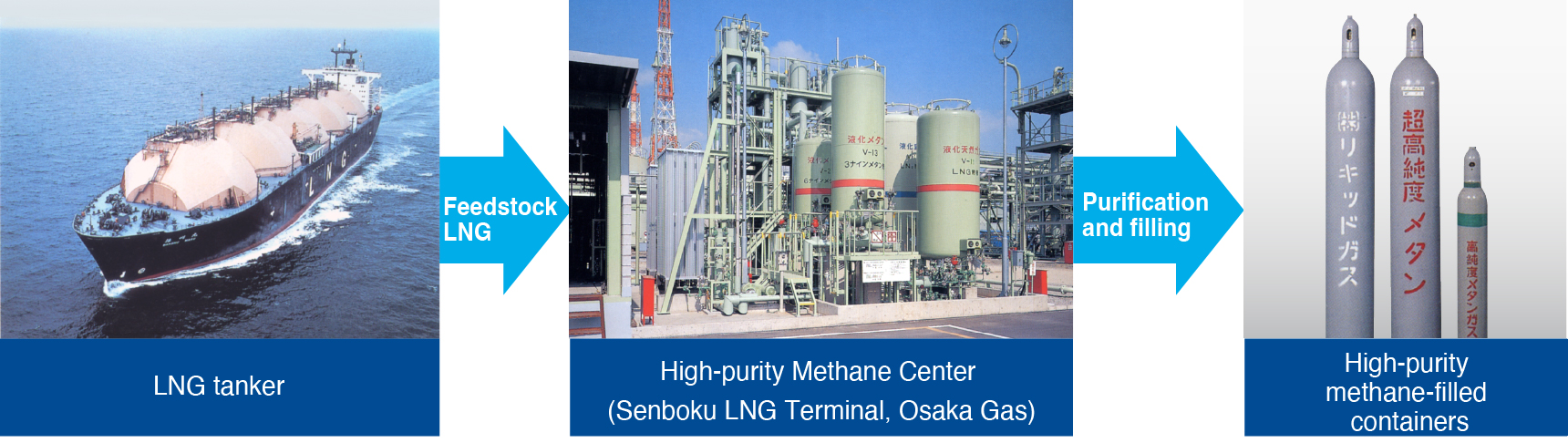

Osaka Gas Liquid has established a high-purity methane production plant at the Senboku LNG Terminal I of Osaka Gas, which produces ultrahigh-purity methane gas from liquefied natural gas (LNG) imported by Osaka Gas, with impurities removed to the utmost limit.

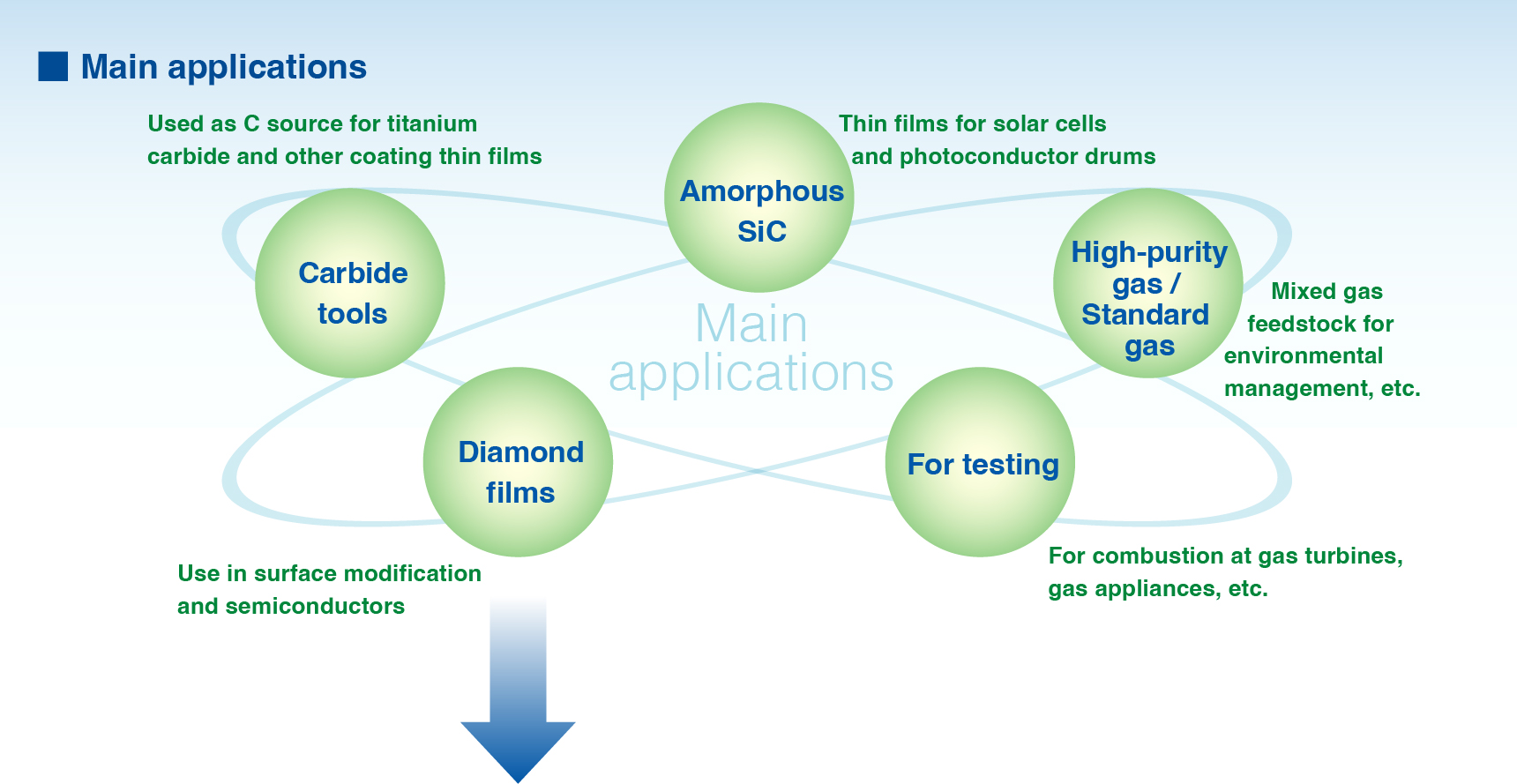

Ultrahigh-purity methane gas is used as a carbon source in manufacturing cemented carbide tools, photoconductor drums, amorphous solar cells and other products, and every year there is growing demand for higher purity and more stable quality.
Furthermore, it is expected that the demand will continue to rise increasingly as a pure carbon source for new ceramics, diamond thin films and other cutting-edge technology fields, and the market will significantly grow in the future.




Features
-
Ultrahigh purity (99.9999 vol% minimum)

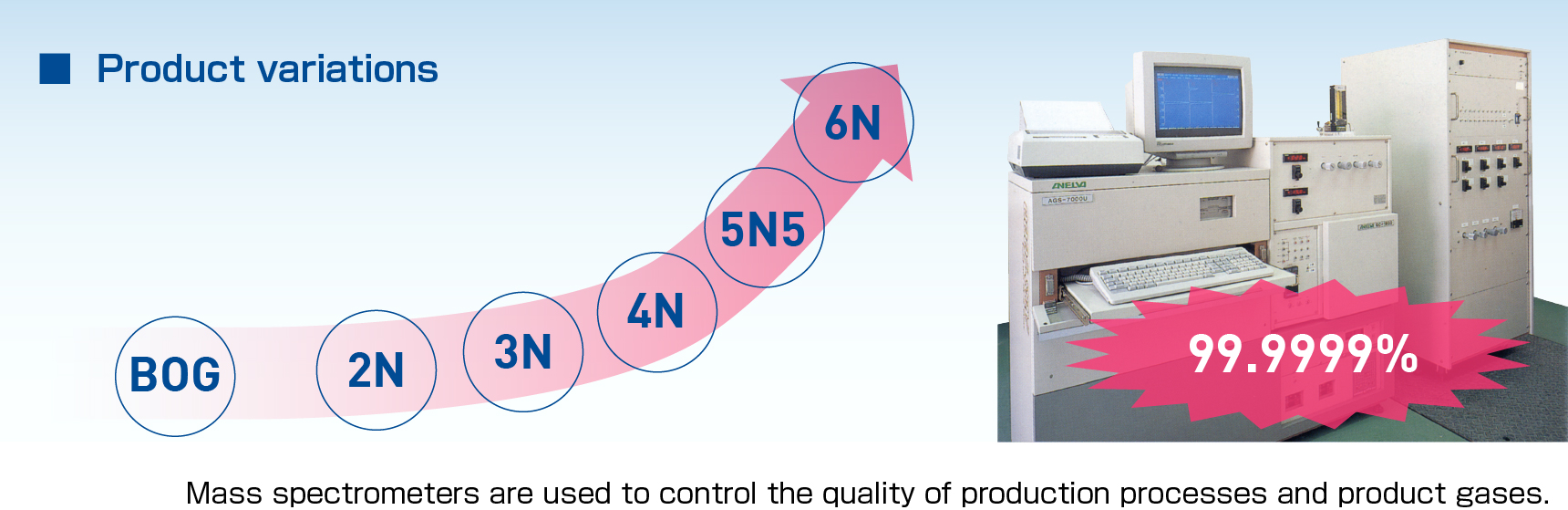

A variety of purity levels are available. (BOG,2N,3N,4N,5N5,6N)
-
Stability of quality
We perform automatic quality monitoring and product analysis using high-purity analyzers.
(ISO 9001 certification obtained) -
Stability of supply
We stably supply gas using LNG imported by Osaka Gas as a feedstock.
-
Filling pressure
Gas is filled at a filling pressure of 14.7 MPa, reducing replacement frequency.
Quality
6N | 5N5 | 4N | 3N | |
---|---|---|---|---|
Standard value (minimum) |
99.9999 vol% | 99.9995 vol% | 99.99 vol% | 99.9 vol% |
N2 | <0.5ppm | <2ppm | <20ppm | <700ppm |
O2 | <0.02ppm | <0.1ppm | <1ppm | <10ppm |
Ar | <0.02ppm | <0.1ppm | <1ppm | <1ppm |
CO2 | <0.02ppm | <0.1ppm | <1ppm | <1ppm |
C2H6 | <0.06ppm | <0.1ppm | <1ppm | — |
C3H8 | <0.09ppm | <0.1ppm | <1ppm | — |
H2O |
Dew point < -72°C <2ppm |
Dew point < -72°C <2ppm |
Dew point < -72°C <2ppm |
Dew point < -65°C <5ppm |
2N | BOG | |
---|---|---|
Standard value (minimum) |
99.0 vol% | 96.0 vol% |
Container types
-
● 10-liter cylinder (filling pressure 11.7 MPa)
-
● 47-liter cylinder (filling pressure 14.7 MPa)
